Specification
|
Power supply
|
DC12V-2A
|
|

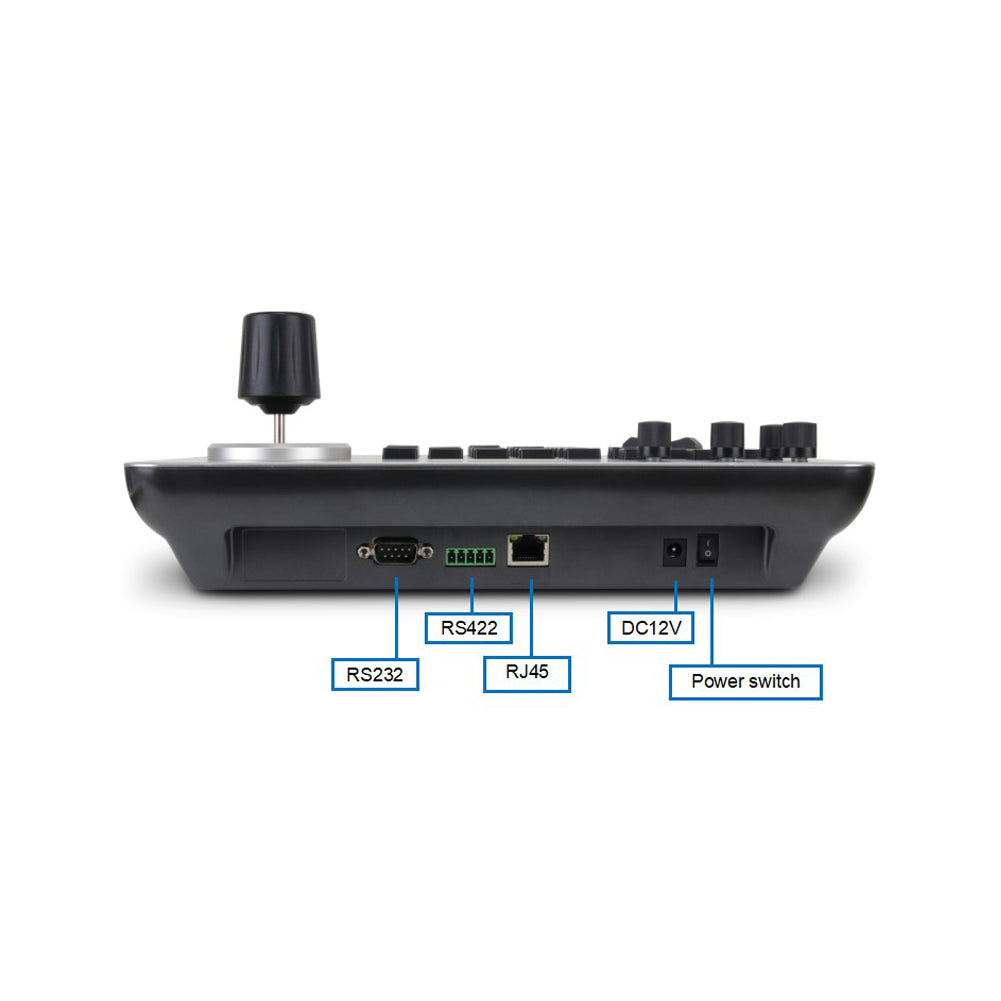

interface
|
RS422、RS232, IP RJ45、USB2.0
|
|
Button
|
Silicone button
|
|
Display method
|
LCD
|
|
Beep
|
Button sound prompt on/off
|
|
Power consumption
|
0.6W max
|
|
Working Temperature:
|
0℃~55℃ / 14°F~131°F
|
|
Protocol
|
VISCA 、ONVIF2.4
|
|
Working humidity:
|
20%~80% (frostless)
|
|
Storage Temperature:
|
-10℃~60℃ / 14°F~140°F
|
|
Storage Humidity:
|
0~90% (frostless)
|
|
Size
|
320mmX177mmX115.5mm
|
Product Introduction:
* The S2 video conference keyboard is with strong operation, which solved the webpage inconvenient operation effectively.
* High-end equipment, unique surface hardening, can prevent scratching effectively;
* Adopt industrial-grade blue screen LCD module, with clear character.
* It supports VISCA and ONVIF protocols, and the VISCA is fully compatible and extensible.
* The built-in web server makes the configuration interface simple and clear, easy to operate.
* It only needs to takes a few steps to achieve perfect control for the video conference camera.
* High-end equipment, unique surface hardening, can prevent scratching effectively;
* Adopt industrial-grade blue screen LCD module, with clear character.
* It supports VISCA and ONVIF protocols, and the VISCA is fully compatible and extensible.
* The built-in web server makes the configuration interface simple and clear, easy to operate.
* It only needs to takes a few steps to achieve perfect control for the video conference camera.
Features:
- Support IP version and Analog version at same time
- Support full VISCA,ONVIF,PELCO-P, PELCO-D protocl
- Support control the software function of the conference camera
- Support 4D joystick control ptz function
- Seesaw switch control zoom speed
- Support IE web setting

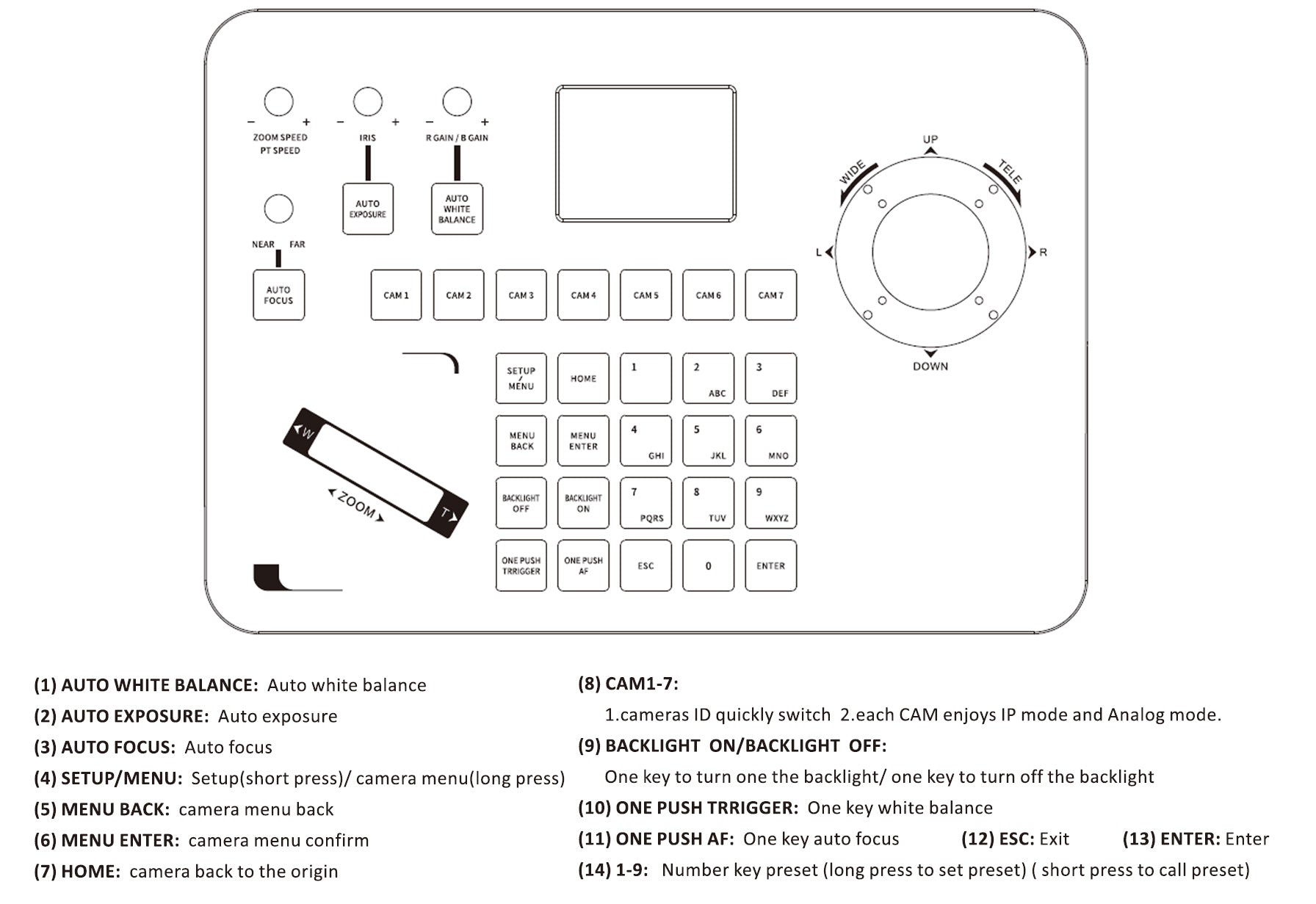

- Support 7 buttons for CAM1 to CAM7 ,fast switch easily

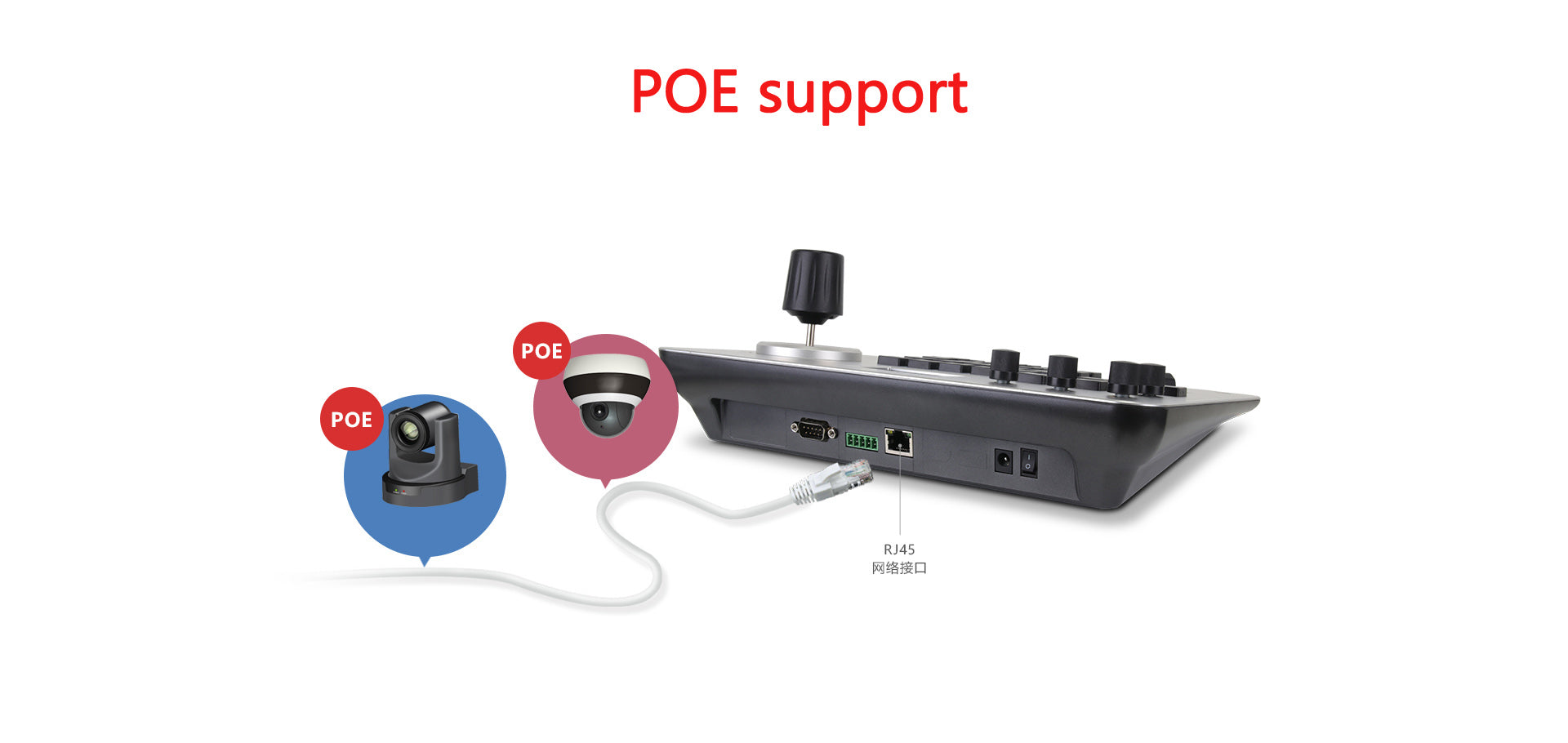

- Support POE
Application:
S2 video conference keyboard can be used in various important conference venues, such as government and telecommunications departments, public security, procurator ate, court, banking, securities, insurance, education, taxation, etc., to control video conferencing cameras in a simple and fast way to ensure remote The quality of the meeting.
