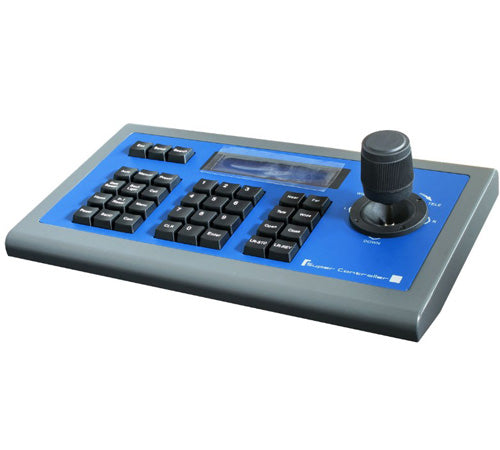

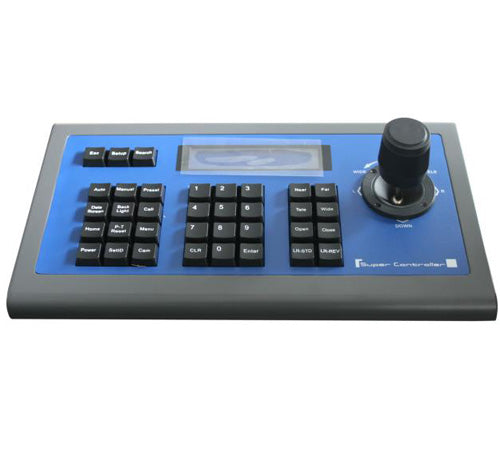

Video Conference Controller, Support PELCO-D/P/VISCA Protocol, PTZ Joystick Keyboard Controller
Product Introduction:
- Specially design for video conference camera, completely compatible with VISCA protocol
- Can set the address code of video conference camera independently
- update the program on line, compile corresponding promotion program according to the protocol and command provided by customer, customer connect keyboard controller through RS232 interface on the computer to update firmware
- communication mode: RS485, RS422, RS232
- rotation speed of speed dome camera by swinging angle of joystick .
Basic Function:

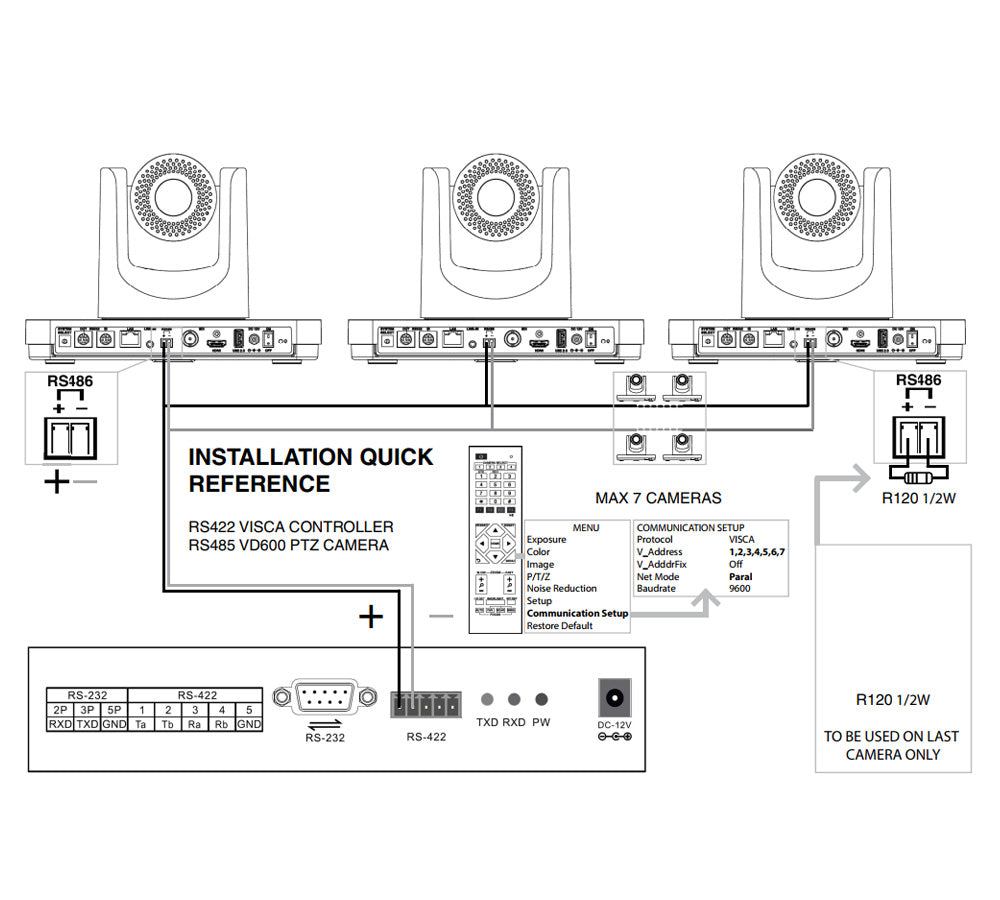

- can control 7pcs series-connected video conference camera
- Can set and call 1-26 preset position of video conference camera
- The standard transmitting distance of RS485 is 1200 meters
- Keyboard operation password on/off/lock function
- Key-press warning on/off function
- Speed dome camera infinitely variable speed control
- LCD display
Parameter:
|
Model |
RM32TS |
|
Protocol |
VISCA |
|
Baud rate(bps) |
9600bps |
|
Control Address |
Control 7 pcs Sony conference camera at the most |
|
Communication Mode |
RS485 half-duplex, RS422 full-duplex, RS232 serial port |
|
Communication Range |
RS485, RS422: 1200m, RS232: 15m |
|
Joystick |
3D(control: up, down, left, right, zoom) |
|

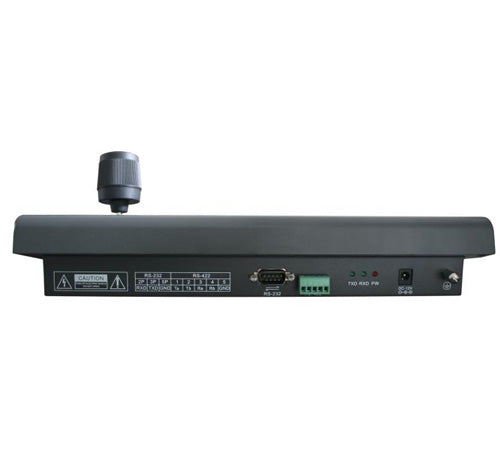

Interface Mode |
RS485/RS422/RS232 ports |
|
Display |
blue LCD |
|
Warning Tone |
Key-touch beep on/off |
|
Power Supply |
DC12V±10% |
|
Power Consumption |
6W MAX. |
|
Working Temperature |
0℃~50℃ |
|
Store Temperature |
-20℃~70℃ |
|
Dimension (mm) |
360×190×55 |
|
Weight (Kg) |
2.8 |
